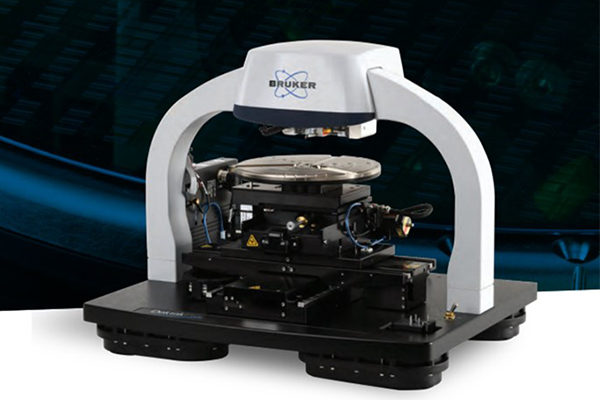

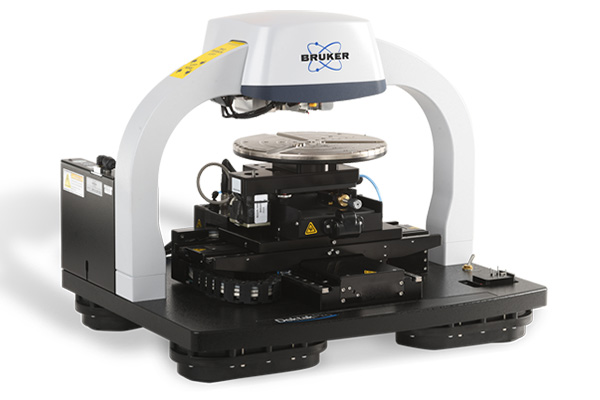

STYLUS PROFILOMETER

Dektak Pro

Proven technology, enhanced performance

Building on 55 years of surface measurement innovation and technology leadership, Dektak Pro™ sets a new standard for stylus profilometer performance. The system uniquely delivers the highest quality data with unrivaled ease of use.

This 11th-generation Dektak® system combines:

·        Unmatched accuracy and better than 4 Å repeatability

·        Accelerated measurement and analysis speed

·        A suite of Bruker-exclusive versatility and ease-of-use features

Only Dektak Pro provides the latest stylus profilometry advances and reliability needed to support your cutting-edge research and industrial applications well into the future.

FEATURES

Still Driving Stylus Profiling Innovation 55+ Years Later

Over the last five decades, Bruker's Dektak systems have led the industry in stylus profiling technology, achieving milestone improvements in resolution, stability, speed, and versatility. Now, Dektak systems are well-established as the gold standard of stylus profilers; when an accurate, trustworthy stylus profiler is needed, Dektak has long been the unquestioned solution.

Dektak Pro takes the next step forward in stylus profiling innovation, providing even more enhanced operability, reliability, and measurement accuracy to enhance and extend the qualities that make Dektak synonymous with stylus profiling.

Maximizing Repeatability and Accuracy

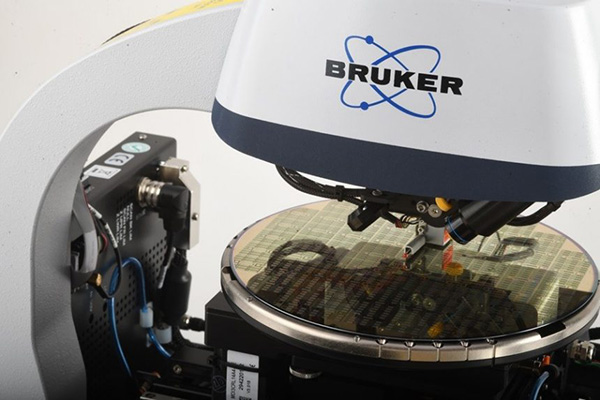

Dektak Pro delivers accurate, precise data with the highest resolution, lowest noise floor, and easiest tip exchange of any commercially available stylus profilometer. State-of-the art measurement and analysis technology maximizes repeatability and accuracy, making single-nanometer step height measurements and better than 4 Å repeatability possible.

Enhancing Throughput

Every step of the measurement and analysis process is accelerated with Dektak Pro. Direct-drive scan stage technology reduces time between scans, and 64-bit parallel processing in the Vision64^® software enables fast data processing.

Additional speed and ease-of-use technological advancements in Dektak Pro:

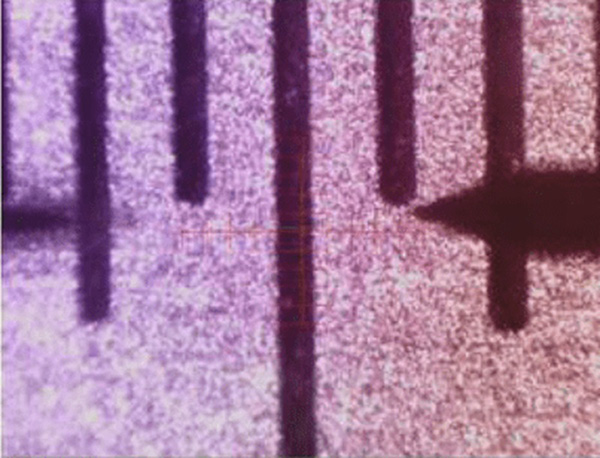

·    A new algorithm     brings nearly the entire field of view into focus in the optical live     image, making it easier to locate features of interest.

·    New step height     algorithms automate analysis routines, improve consistency, and minimize     potential user error in step height calculations.

Providing Ultimate Versatility and Ease of Use

Suited to widely diverse applications

Dektak Pro addresses R&D, process development, and QA/QC present and future needs across a host of industrial and research applications, such as:

·    Microelectronics

·    Thick film coatings

·    Biomaterials

Accurate and responsive in dynamic measurement scenarios

With Dektak Pro, one measurement head covers 5 nm–1 mm step heights and 0.03–15 mg loads (with N-Lite+ option) without recalibration. The low-inertia sensor (LIS 3) rapidly adapts to sudden changes in surface topography and maintains accuracy and responsiveness in dynamic measurement scenarios

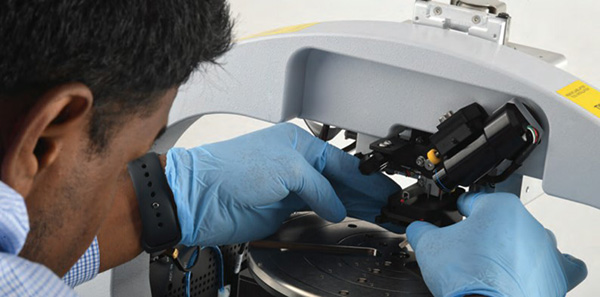

Fast and easy stylus replacement

Dektak Pro’s unique self-aligning stylus assembly facilitates quick and easy stylus exchange while eliminating any potential mishaps during the process. Bruker offers the widest range of stylus sizes to accommodate nearly any application requirement.
